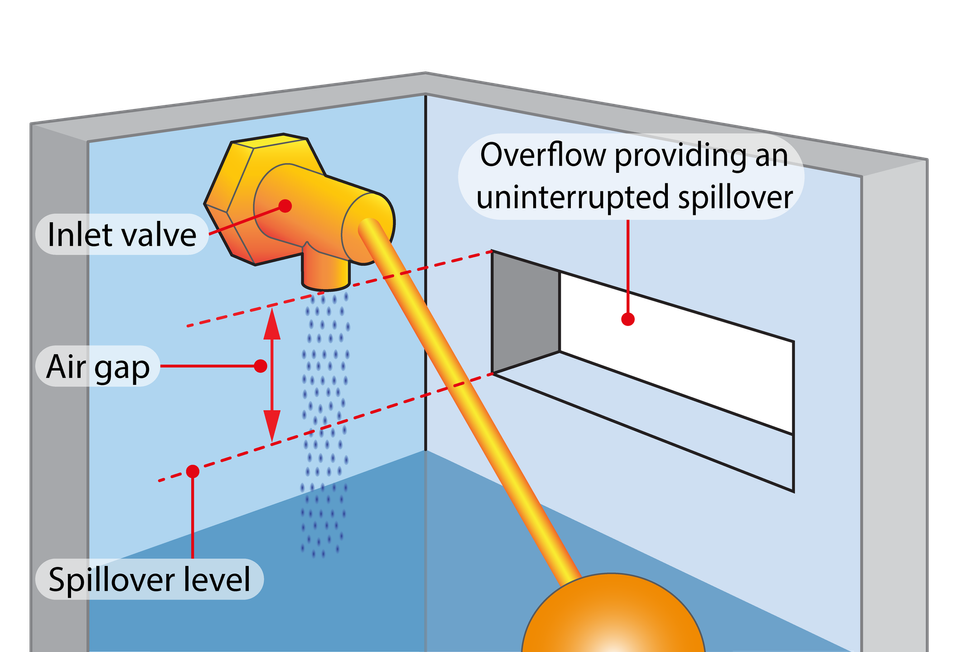

Guide for sizing Type AB air gap spillover

To use this guide you will need to know the size of the inlet and width of the spillover

This guide is only only for sizing rectangular overflows in cisterns supplied by a single inlet valve.

It should not be used for cisterns which provide a backup supply for alternative water systems e.g. grey or rainwater systems. How to create an acceptable air gap for this type of arrangement can be found here.

Further information about Type AB air gaps can be found here.
